Platine befindet sich im Aufbau.

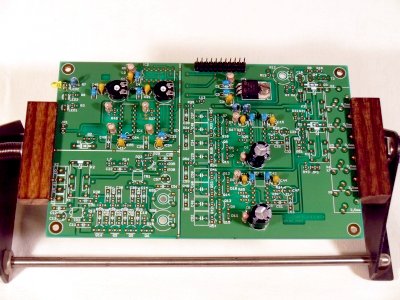

1. Bauabschnitt - Stromversorgung 5V, 12V, 2,5V, 5,6V und 11,2V.

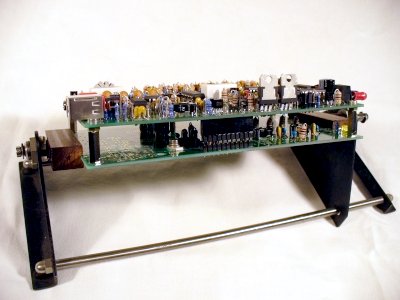

1. Bauabschnitt - RX- und TX-Platine als Sandwitch.
2.- 5.Bauabschnitt - Relaisumschaltung, NF-Umschaltung, Impedanzwandler und Mischer.
2.- 5.Bauabschnitt - RX- und TX-Platine als Sandwitch.

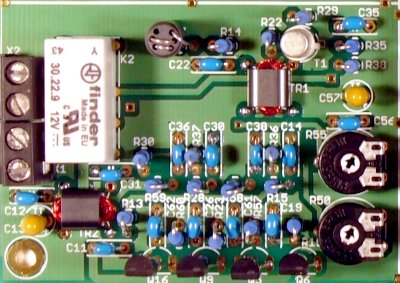

6.Bauabschnitt - Treiber und 1W Endstufe.

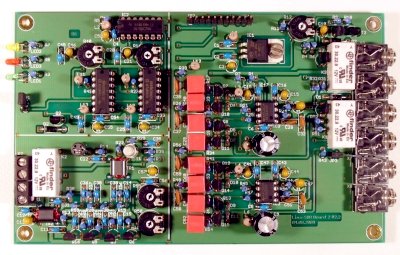

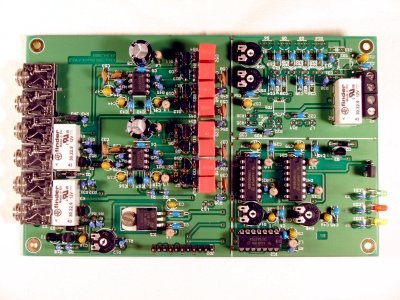

Fertige TX-Platine.
1. SSB-QSO mit Jürgen, DF4ER, am 16.10.2009, um 12:45 Uhr MESZ auf 3620 kHz.

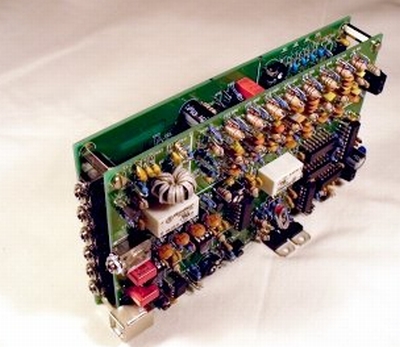

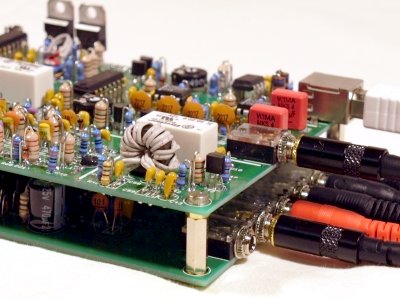

RX- und TX-Platine -- Antennenanschluß

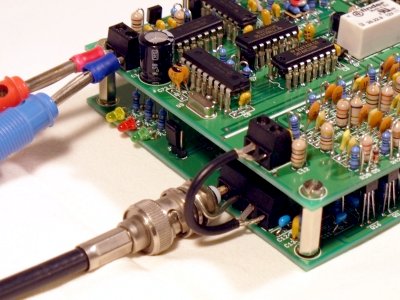

RX- und TX-Platine -- NF-Anschlüsse

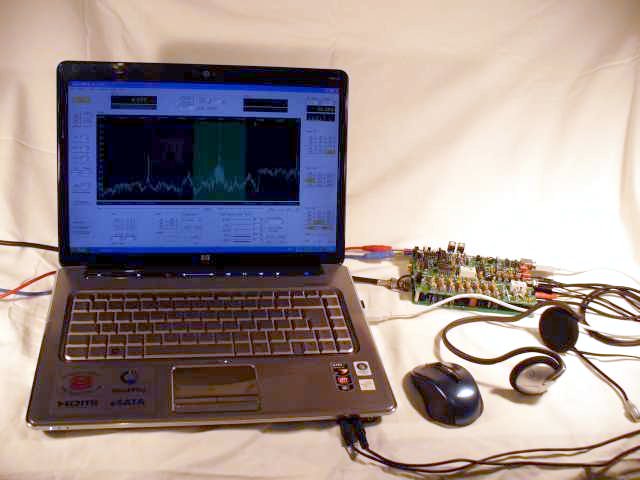

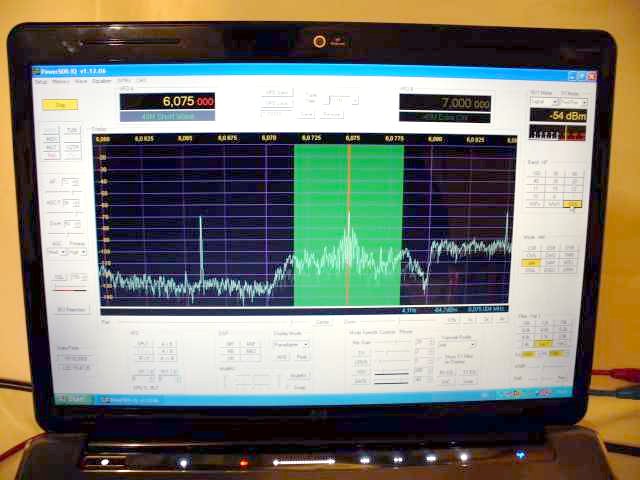

PowerSDR --- Deutsche-Welle 6075 kHz.
PowerSDR --- Deutsche-Welle 6075 kHz.
PowerSDR --- Deutsche-Welle 6075 kHz.

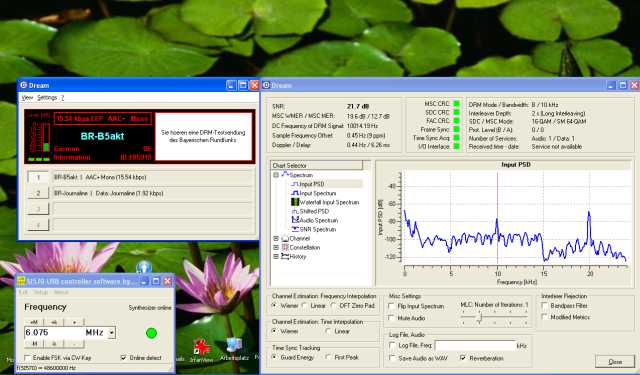

Dream -- BR5 (DRM) 6085 kHz.

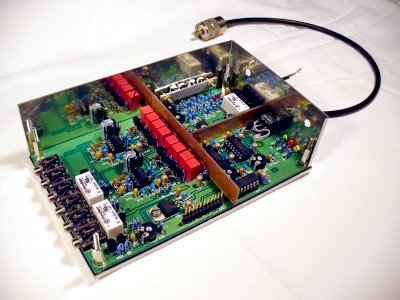

TX-Platine im Gehäuse.
TX-Platine im Gehäuse.

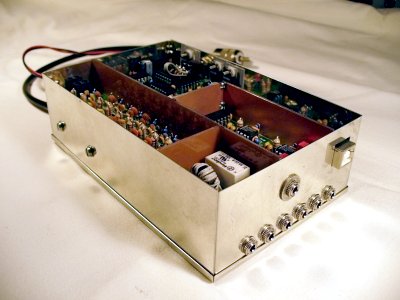

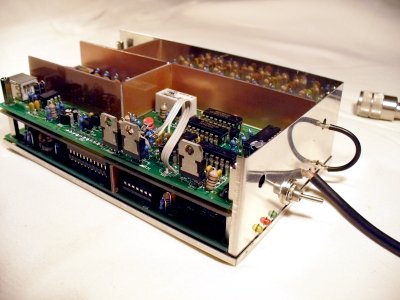

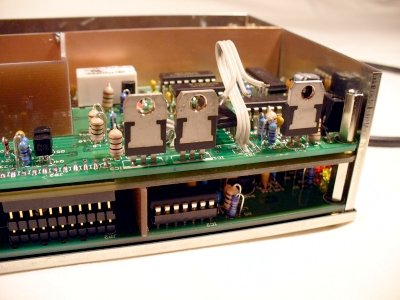

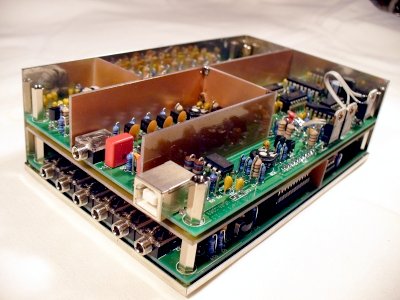

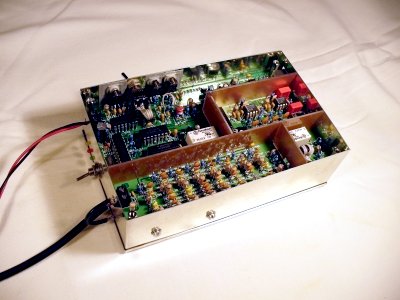

RX- und TX-Platine im Gehäuse.
RX- und TX-Platine im Gehäuse.
RX- und TX-Platine im Gehäuse.
RX- und TX-Platine im Gehäuse.
RX- und TX-Platine im Gehäuse.
RX- und TX-Platine im Gehäuse.
Gehäuse komplett.
Gehäuse komplett.

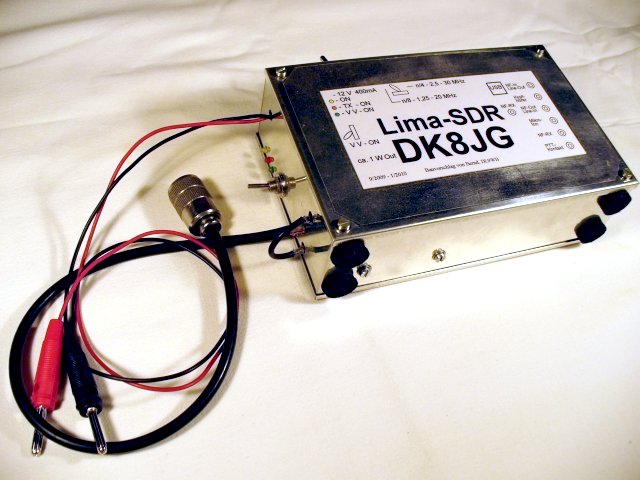

Gehäuse jetzt mit Antennen- und Stromversorgungs-Buchsen.
